SPECIFICATIONS
Brand Name: AlgoLaser
Certification: CE,ce
Engraving Area: Other
Hign-concerned Chemical: None
Is Smart Device: No
Laser Power: Other
Model Number: LightBurn Software Gcode License Key
Origin: Mainland China
Algolaser Laser Engraver Large Area 40x85cm/40x40cm Laser output power 5W/10W Woodworking Laser Cutter Machine for Wood Metal
Note:
Welcome to Ortur Official Store,For Algolaser DIY Kit:

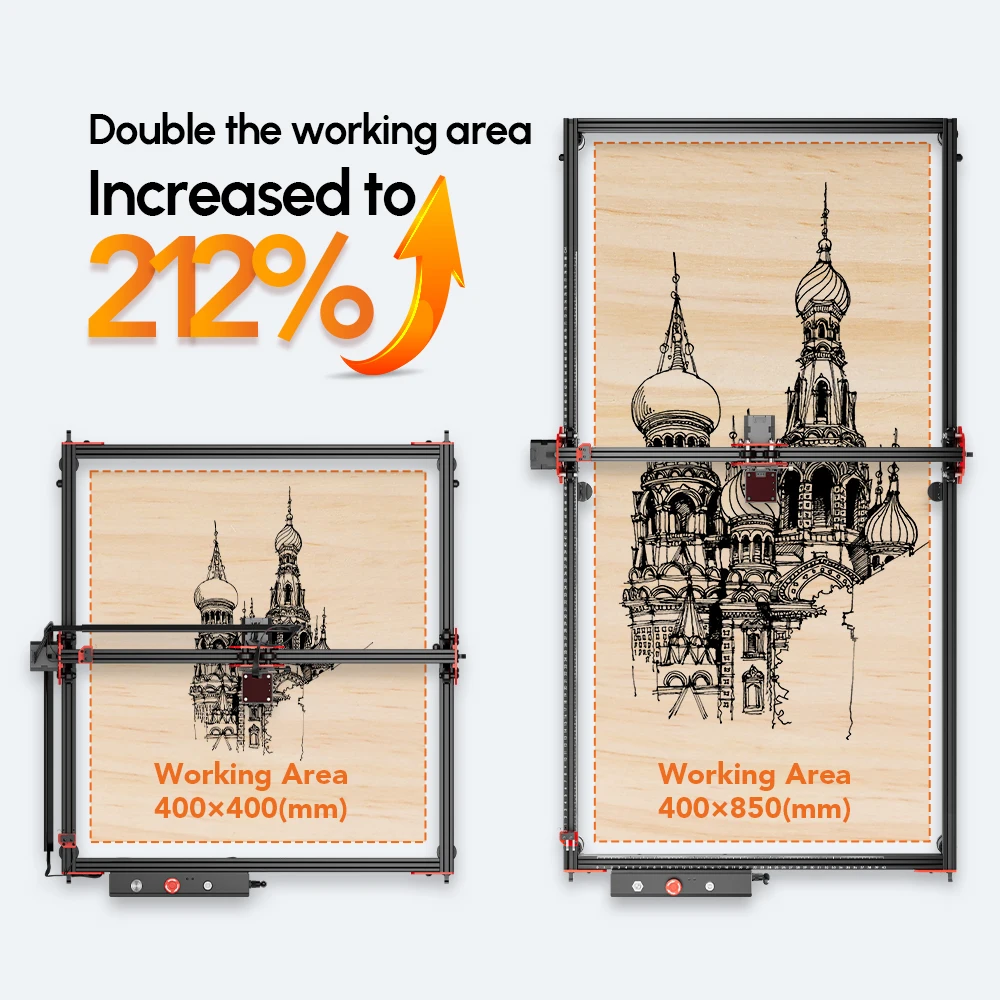

Standard work area400x400mm.

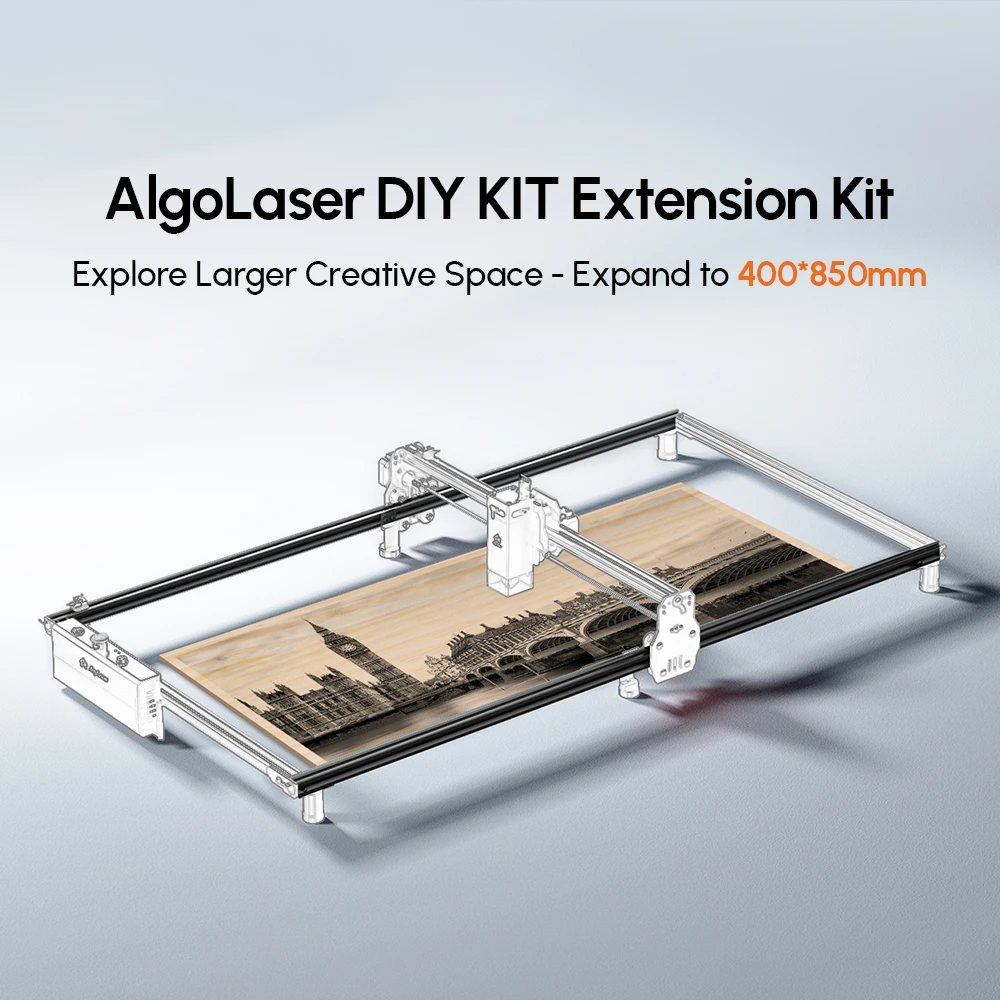

With extension kits400x850mm.
Features：
High Accuracy, High SpeedSmaller
laser spot (0.04mm*0.09mm) with ultra fine lines meets your requirement
for details on your work. Up to 12000 mm/min speed is fast enough to
supplement your business orders.
Explore More Fun The
ONLY 10W entry-level laser engraver that supports WiFi. USB-C
connection, Bluetooth, and built-in TF card are also covered. For
newbies, you can easily get started engraving offline with AlgoLaser
App.
Upgraded Motherboard Improved performance, expanded storage8MB RAM, 8MB storage memory, and a built-in 32GB SD card
Strong CompatibilityThanks
to the upgraded motherboard, the DIY kit compatible laser power up to
20W to satisfy more requirements. With Smart Hub and AUC, it can work
with versatile accessories from different brands.
Easy to Upgrade and Expand The upgraded terminals of the motherboard, as well as modularization design
of DIY kit, allows users to extend the existing frame and connect other accessories to achieve more possibilities.

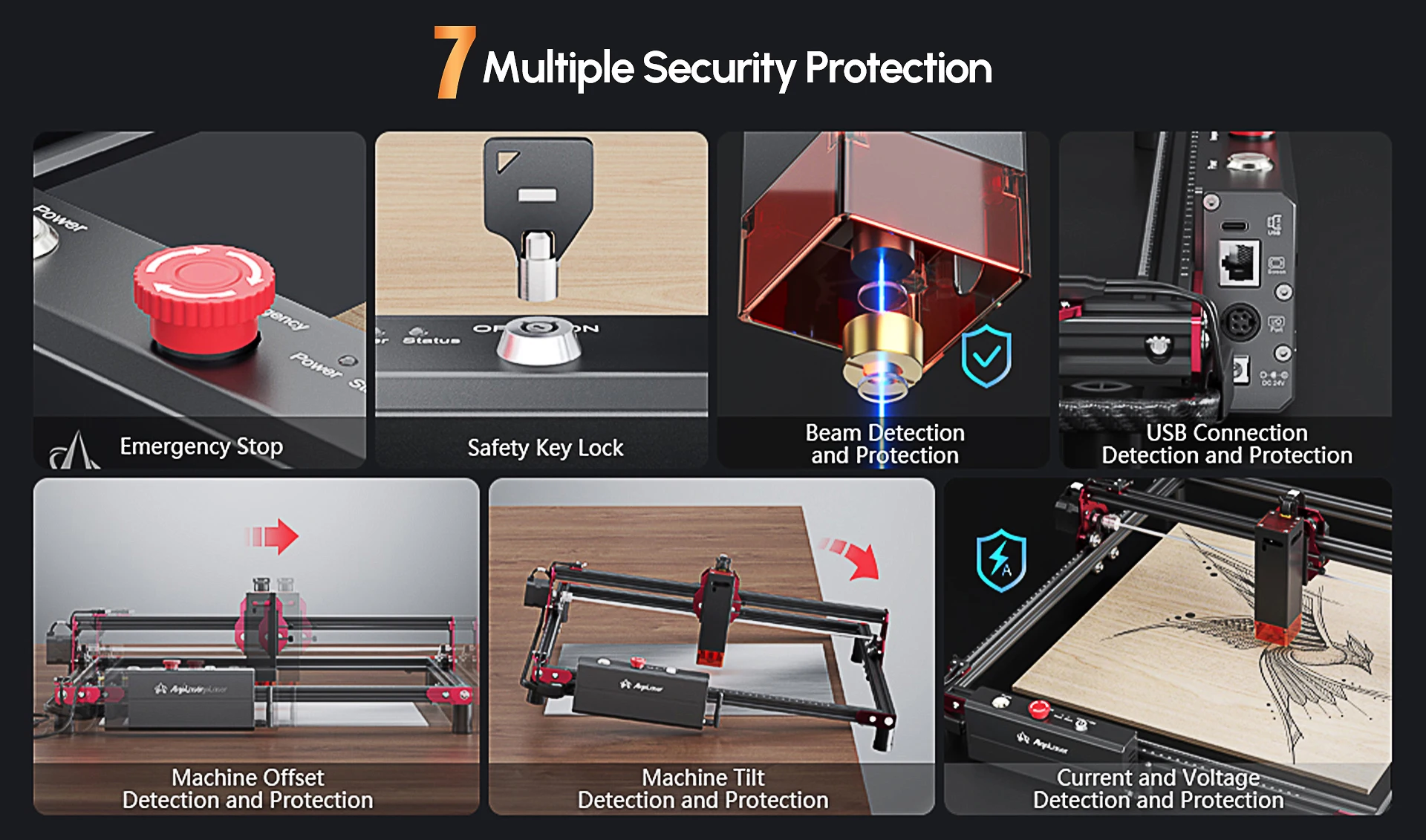

7 Safety Protections Machine Offset
Detection and ProtectionMachine Tilt Detection and ProtectionUSB
Connection Detection and ProtectionBeam detection and protectionCurrent
and Voltage Detection and ProtectionEmergency Stop SwitchKey Lock
User-friendly InstallationThere
are few cables need to connect and each one it's just the right length
for its position. The assembly takes only 10~15 mintutes with
instruction help, even for newbies.
Motherboard:ALGOLASER_DIY_KIT_V1.2
Engraving area: 400*400mm
With Expand kits Engraving area :400*800mm(need to order separately)
Control Software:LaserGRBL (free), LightBurn (Paid Software), Wifi APP
Safety Precautions:
Machine Offset Detection and Protection
Machine Tilt Detection and Protection
USB Connection Detection and Protection
Beam detection and protection
Current and Voltage Detection and Protection
Emergency Stop Switch
Key Lock
Frame Materials:Aluminum Profile
Motors:NEMA 42 Stepper Motors
Mechanical Precision:Y:12.5um，X:12.5um
Pixel Accuracy:Adjustable (Default: 300 pixels per inch, about 0.81um Pixel Accuracy)
Engraving Area:X400mm*Y400mm
Electric Power:72W
Luminous Power: 10W/5W
Wave Length:445±5nm
Control Mode:PWM
Power Rate:S0-S1,000
Engraving Speed:0-12,000MM/Min
Baud Rate:115200 - 921600 (Default: 115200)
Computer OS:Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)
Control Softwares:LaserGRBL (free), LightBurn (not free), Wifi App
Input Format:BMP, JPG, PNG, NC, DXF, SVG, etc.
Available Materials of Engraving:Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.
Available Materials of Cutting:Paper Board, KT Board, Felt Cloth, Leather, Thin Plywood, Thin Black Acrylic, etc.
Input Voltage:110V-240V (Compatible)
Power Adapter Output:24V / 3A
Operating Temp.:-20℃-50℃

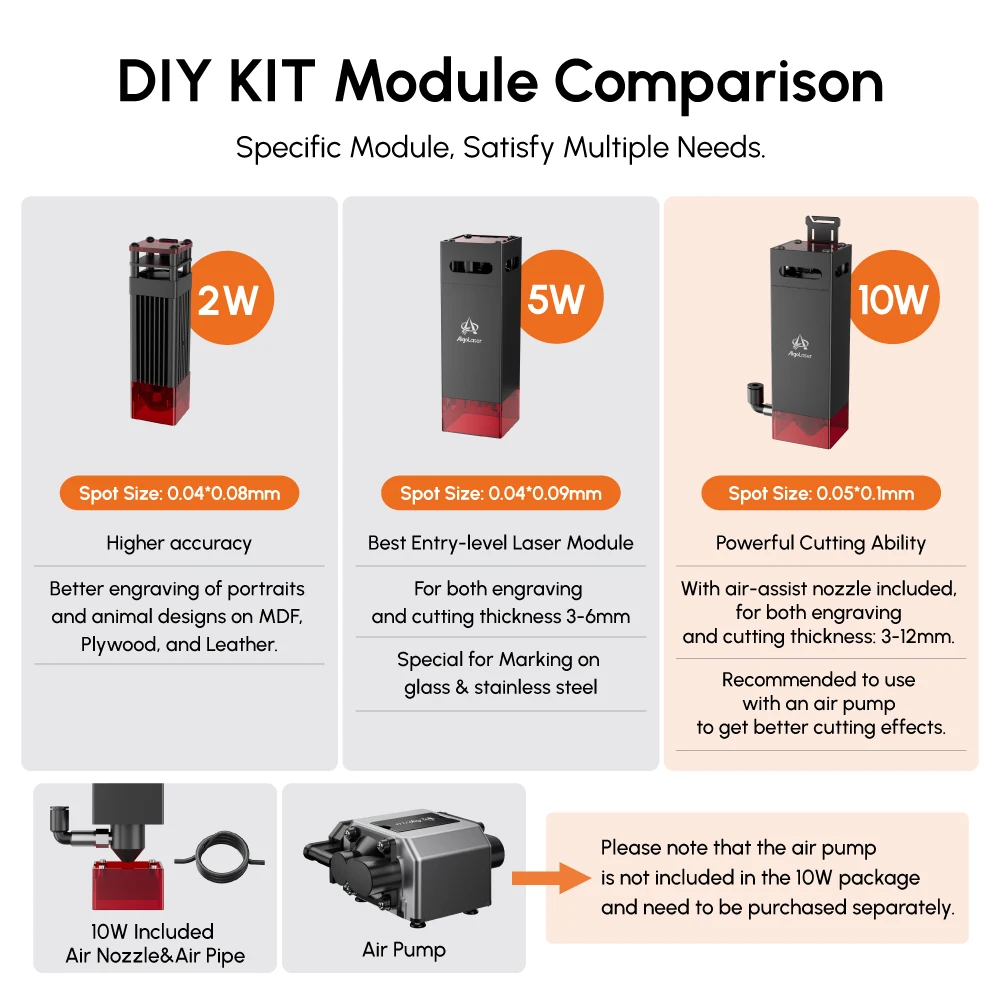

How to make selections beteween AlgoLaser DIY Kit 2W 5W and 10W?
