SPECIFICATIONS
Brand Name: Navceker
Connector B: HDMI-compatible
Gender: Male-Male
Model Number: ZY-AH44
Origin: Mainland China
Type: HDMI-Compatible Cables
Connector A: HDMI-compatible
Package: Yes
Feature: HDMI-Compatible1.4
Outer Diameter: 1mm
Bundle: Bundle 1
Packing: Carton Box
Certification: CE
Certification: FCC
Certification: RoHS
Shielding: Non-Shielded
Application: Projector
Application: DVD Player
Application: Camera
Application: For iPod
Application: Computer
Application: Multimedia
Application: TV box
Application: Monitor
Application: Television
Application: MP3 / MP4 Player
Application: LCD,XBox,apple TV
Resolution: video wall controller 4K 4x4
Video standard: video wall controller 5x3
HDMI port: HDMI wall controller tv 4k 3x3
IR control: wall controller tv 4k output 2x6
24 display modes: tv video wall cotroller 6x2
Audio: Video Stitching Wall Processor
Model number: ZY-AH44 video wall controller 4x4
Product name: Wall TV Splicing Screen 7x2
Power: 2x7 HDMI Video Wall Controller
Warranty: one year free warranty
Choice: yes
semi_Choice: yes
|
|
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.
Navceker HDMI Video Wall Controller 4X4 4K 30Hz video Power Adapter 1X16 Screen splitter Wall Mount 12V HDMI Processor
Description:

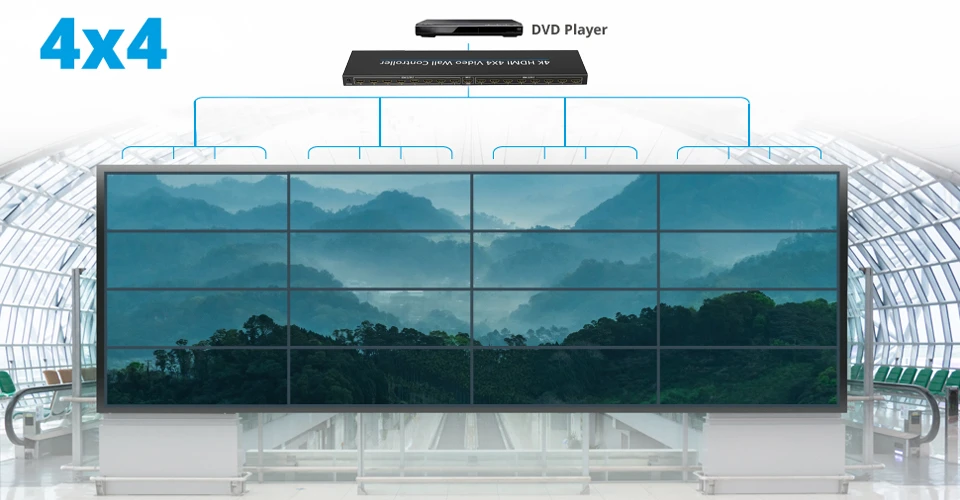

ZY-AH44,Navceker 4x4 Video Wall Controlle support 1-way HDMI input and 16 HDMI Output,the main function is to divide a complete HDMI HD image signal into 16 blocks and assign to 16 video display unit(such as Rear projection unit,LCD TV,etc),Complete with 16 HDMI hign-definition video display units to form a large dynamic image screen
Features:
5X3 Video wall controller 4K 30Hz DVI HDMI 1X16 Screen splitter video wall mount TV matrix controller HDMI Video wall Processor
Package List:
1xTV Video wall controller 4x4
1x 12V DC Power adapter
1xRemote control(without battery)
1xUser manual

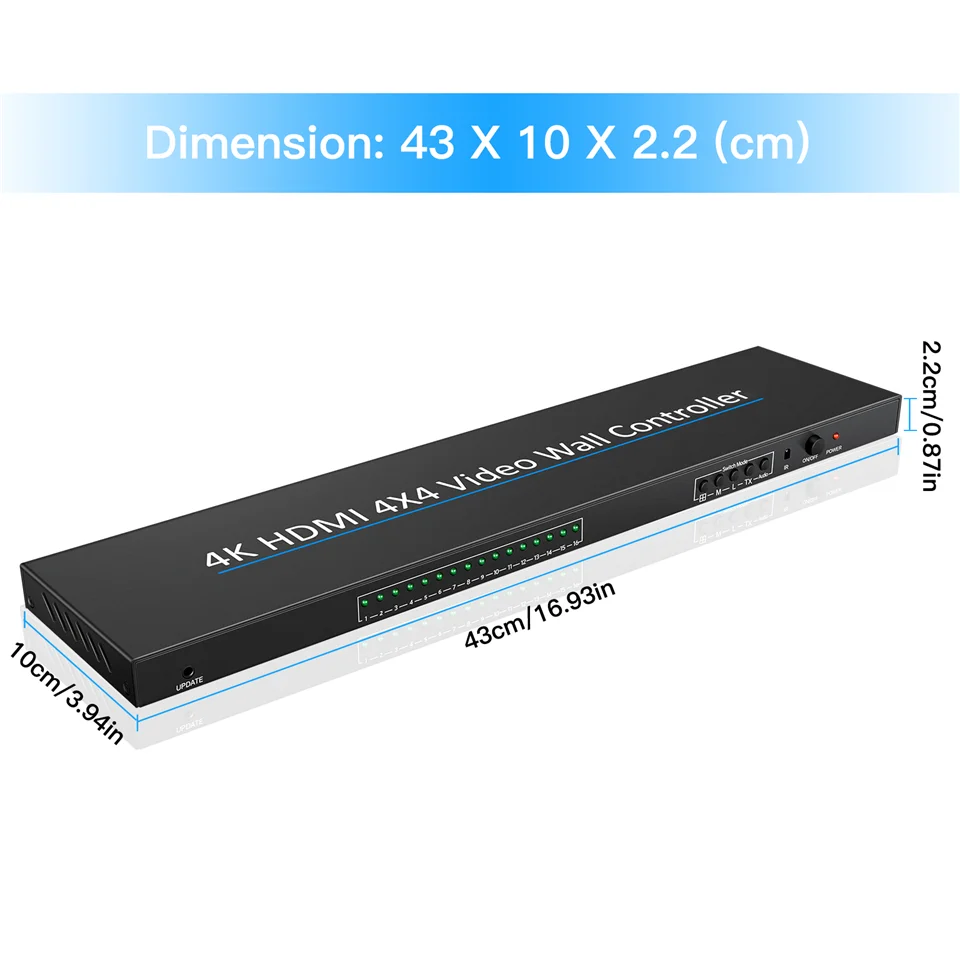

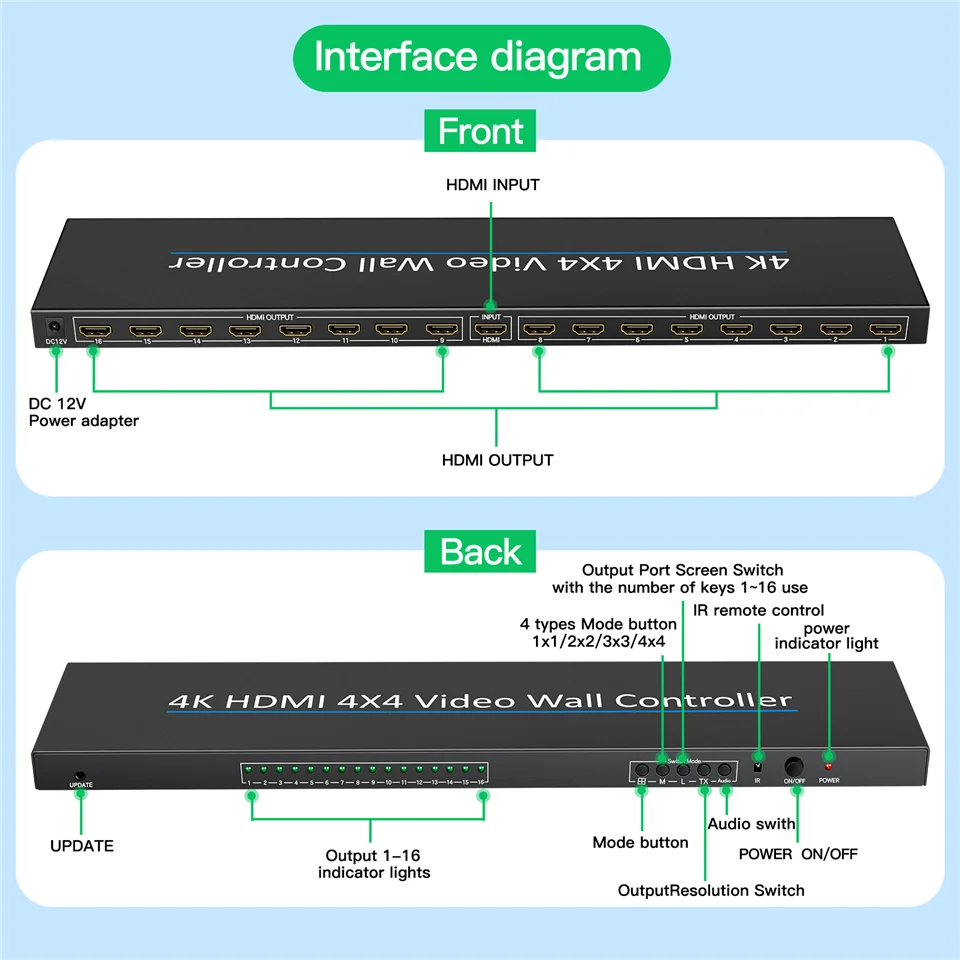

Navceker 4x4 TV Video Wall Controller with 24 display modes
Support 1 HDMI-Compatible input
Support 16 HDMI-Compatible outputs
* Up to 4K@30Hz output
* multiple splicing support, easy operation, Plug and play
* Support six resolution inputs and outputs: 1280x720@60Hz,1800x1350@60Hz,1920x1080@60Hz,1920x1440@60Hz,2560x1600@60Hz,3840x2160@30Hz

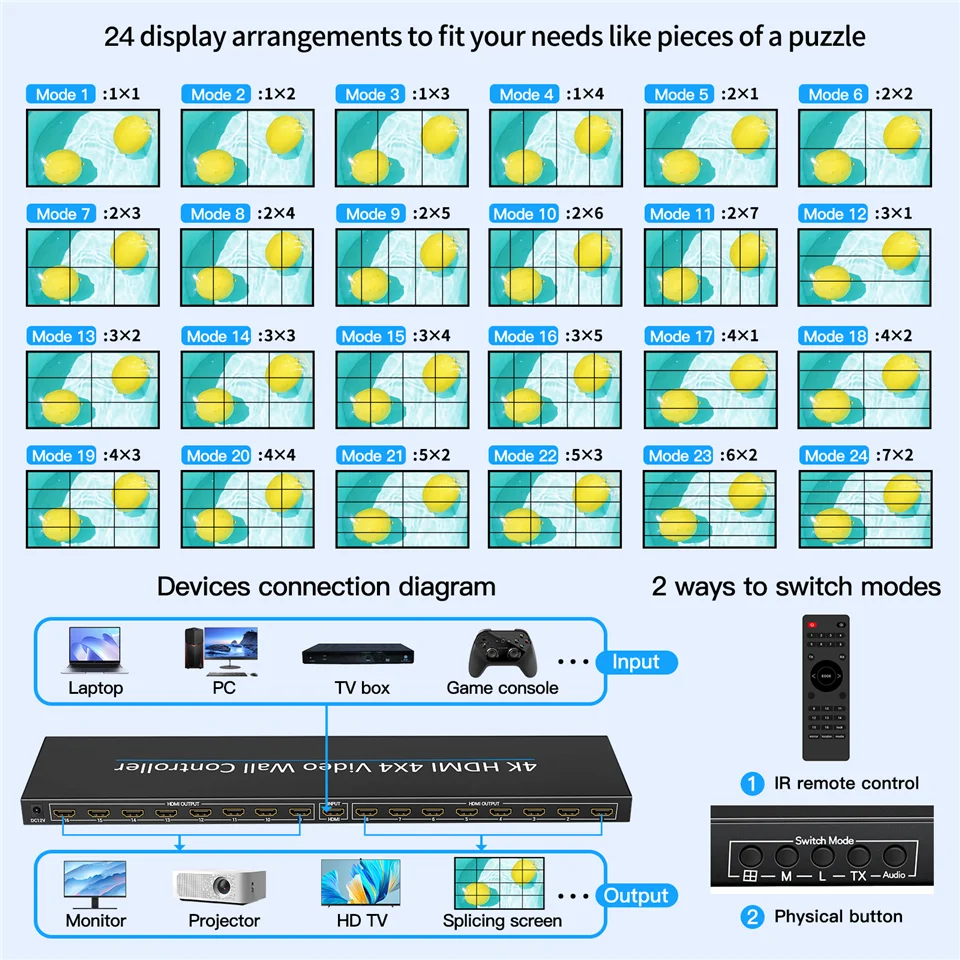

24 Display Modes:
Support 1x1,1x2, 1x3, 1x4, 2x1, 2x2, 2x3, 2x4, 2x5,2x6,2x7,3x1, 3x2, 3x3, 3x4,3x5,4x1, 4x2,4x3,4x4,5x2,5x3,6x2,7x2 modes for your choice
4K@30Hz Ultra HD:
Supports resolution:1280x720@60Hz，1800x1350@60Hz，1920x1080@60Hz，1920x1440@60Hz，2560x1600@60Hz,3840x2160@30Hz

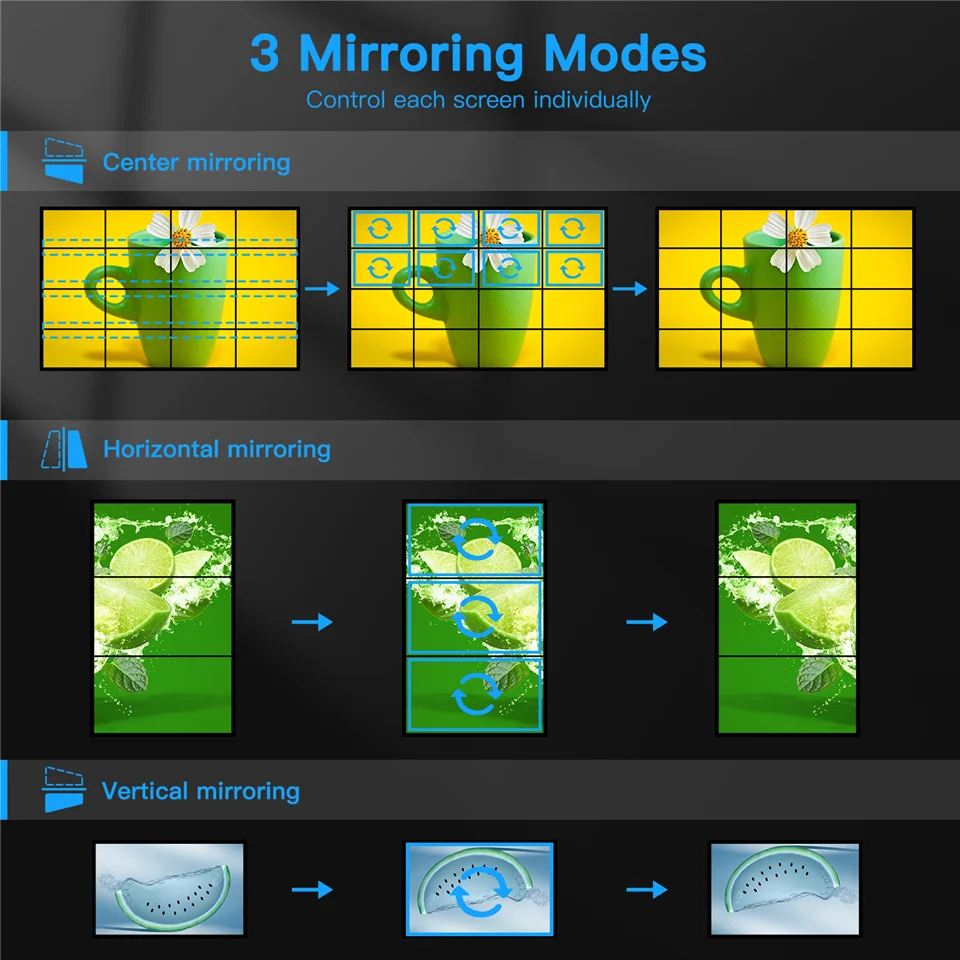

3 Mirroring Mode:
Control each screen individually,Center mirroring,Horizontal mirroring and Vertical mirroring

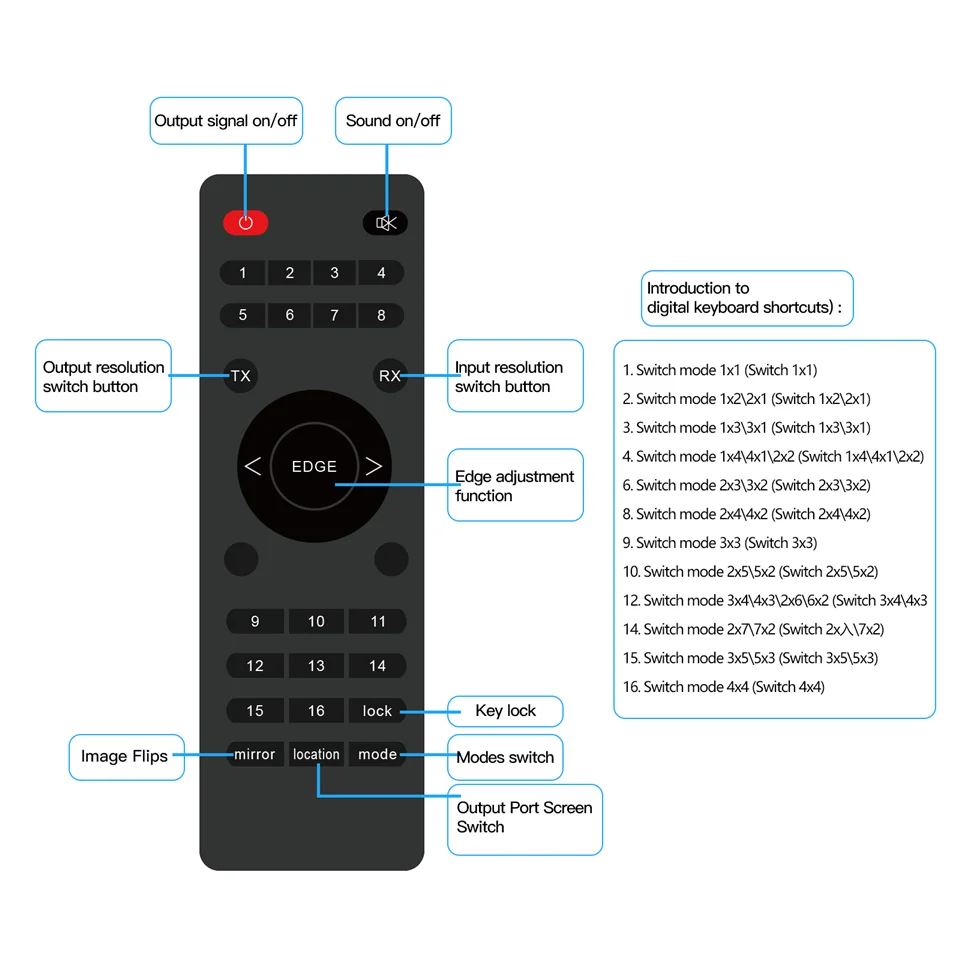

Two Switching Mode:
Panel switching and IR remote control could help you use edge adjustment,image flips,resolution switching and 24 display mode more easily.
Support multiple splicing modes, easy to operate, plug and play
Multi screen splicing "seamless mixing
Porous design convection heat dissipation
Non slip design is stable and non slip
Operation Special Note (very important) :
1. HDMI cable must use 19 + 1 full needle of wire.
2. The use of image flipping (each image can be flipped independently) :
Step 1, press the remote control"Mirror" button, wait for the OSD in the upper left corner of the image to display"Mirror";
Step 2, use the number button to operate, for example, you want to flip the sixth screen, you press the number"6" button.
When you're done, remember to press the"Mirror" button again to exit the operation.
3. Switch the output port screen: first, press the remote control"Location" button, wait for the OSD in the upper left corner
of the screen to show"Location"; second, use the digital keys to operate, for example, you want to select the 6th screen output,
you press the number"6" button. When you're done, remember to press the"Location" button again to exit the operation.
