SPECIFICATIONS
Brand Name: Navceker
Connector B: jack
Connector B: OPTICAL INTERFACE
Connector B: Aux
Connector B: BNC
Connector B: HDMI-compatible
Gender: Male-Male
Model Number: ZY-AV8
Origin: Mainland China
Type: HDMI-Compatible Cables
Connector A: TYPE-C
Connector A: HDMI-compatible
Package: Yes
Outer Diameter: 1mm
Bundle: Bundle 1
Packing: Carton Box
Certification: CE
Certification: FCC
Certification: RoHS
Shielding: Non-Shielded
Application: Projector
Application: Camera
Application: For iPod
Application: Computer
Application: Multimedia
Application: Television
Application: DVD Player
Application: TV box
Application: Monitor
Application: MP3 / MP4 Player
Application: LCD,XBox,apple TV
Resolution: 4K 120Hz HDMI audio extractor eARC
Video standard: HDMI 2.0 audio extractor splitter
Connector A: HDMI audio extractor with 3.5 mm 2.1 CH
Connector B: HDMI Audio (SPDIF+L/R+ARC) extractor
ARC: HDMI audio extractor with ARC 5.1 CH Audio optical toslink out
Audio Extractor: hdmi audio extractor 5.1
Model number: ZY-AV8 HDMI To HDMI With Optical Toslink SPDIF 3.5mm audio extractor
Product name: 4K HDMI Audio Extractor Splitter 5.1 CH
HDR: HDR HDMI audio extractor 4K
Warranty: one year free warranty hdmi to hdmi audio extractor
|
|
If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract,
more refined small gifts free to send, please contact customer service.
If you follow our store and become our fans, you can get extra 5% discount for some designated products.

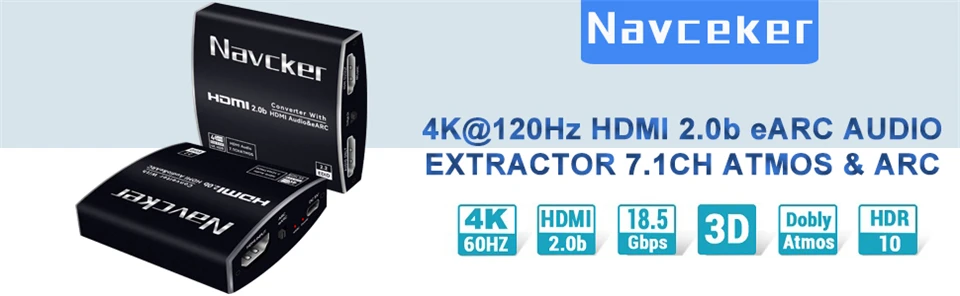

2023 Best eARC HDMI 2.0 Audio Extractor 4K 120Hz RGB8:8:8 HDR HDMI Splitter Audio Converter 4K HDMI to Optical TOSLINK SPDIF 7.1
Description:
ZY-AV8,Navceker 4K 120Hz(YUV 4:2:0) HDMI 2.0 eARC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output switch with audio out .AUDIO ONLY HDMI audio output support audio extract function , AUDIO ONLY HDMI support eARC/ARC (Enhanced Audio Return Channel).The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K@60/120Hz RGB 8 :8 :8 .
There are 4 models optional, different model has different interface and appearance, please choose suitable model before purchase:
(1)The Black color is ZY-HA201,HDMI 2.0b and HDCP 2.2,4K@60Hz 1080P/1440P@120Hz HDMI audio extractor with ARC & optical Toslink.support YUV/RGB 4:4:4,EDID,Dolby Vision,HDR 10 .
(2) The Red color is ZY-AV8,HDMI 2.0b and HDCP 2.2,4K@120Hz 4K@60Hz 1080P/1440P@120Hz
HDMI audio extractor with eARC for 7.1CH AUDIO ONLY & ARC .support RGB 8:8:8(7.1CH Dolby atmos),EDID,Dolby Vision,HDR 10 .
(3) The Red color is ZY-AV8E,HDMI 2.0b and HDCP 2.2,4K@120Hz 4K@60Hz 1080P/1440P@120Hz
HDMI audio extractor with eARC for 7.1CH AUDIO ONLY & ARC for 5.1CH coaxial and optical Toslink.support RGB 8:8:8(7.1CH Dolby atmos),EDID,Dolby Vision,HDR 10 .
(4) The White color is ZY-AV2E,HDMI 2.0b and HDCP 2.2,4K@120Hz 4K@60Hz 1080P/1440P@120Hz
2x1 HDMI switch audio extractor with eARC for 7.1CH AUDIO ONLY & ARC for 5.1CH coaxial and optical Toslink.support RGB 8:8:8(7.1CH Dolby atmos),EDID,Dolby Vision,IR remote control,HDR 10 .
Important Note before buy it:
1.When you use eARC or ARC soundbar,please you use HDMI INPUT of soundbar connect with AUDIO ONLY HDMI port of our audio extractor,please DO NOT use HDMI eARC/ARC Input of soundbar that can not get any audio.because eARC port of Soundbar ONLY could connect HDMI eARC INPUT of HDMI TV directly,it can not add another device between eARC soundbar and HDMI eARC TV
2.When you use Navceker eARC audio extractor with 4K@120Hz (YUV 4:2:0 with New Version PS5/XBox One and PC/computer),please you use all of HDMI cable with 19 pin HDMI 2.1 version Cable(Less than 3 meter HDMI 2.1 Cable).we suggest that you use Navceker HDMI 2.1 Cable that works well with Navceker eARC audio extractor.
Features:
4K HDMI Switch eARC Audio Extractor With ARC & Optical Toslink HDMI 2.0 Switch 4K 60Hz HDMI Switcher Remote for Apple TV PS4
Excellent Quality
There are 1 HDMI input ,1 port HDMI output ,1 port HDMI audio output,1 USB-C power port .
AUDIO ONLY HDMI support eARC/ARC (Enhanced Audio Return Channel)
support 480p/576i/576p/720p@60Hz/1080p@60/120Hz/1440P@60/120Hz/4Kx2K@30/60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2,4K@120Hz YUV 4:2:0 with new version PS5/XBox and PC(Not support RGB4:4:4).
TV Mode:In TV Mode,the HDMI output signal is in TV copy mode,so the output resolution will be based on the EDID displayed on the TV,HDMI Audio extract output will also extract audio,AUDIO ONLY HDMI out will get 2.0CH or 5.1CH audio format.
Multi CH Mode:In 7.1CH mode,the audio format is LPCM,the HDMI audio extract output signal will be output on the HDMI AUDIO ONLY output.(Note:If the TV or monitor does not support 7.1CH,there will be no audio signal)
Max bandwidth per channel :600MHz.Max baud rate per display :18.5Gbps
Compatible with HDR 10,HDMI 2.0b,HDCP2.3/2.2/1.4/1.3/1.2/1.1.
Navceker HDMI Switch support LPCM 7.1CH ,Dolby True -HD,DTS -HD,AC 3,DTS ,DSD, Dolby Digital Plus and Dolby Atmos audio format ,But can 't decode these audio formats .If your Amplifier or soundbar not support these audio formats ,there will be no audio out from your soundbar or amplifier .At this situation ,please set the audio format to PCM /LPCM on your HDMI source .
HDMI Audio Extractor -HDMI audio out allow you to extract the sound from the HDMI input source (like PS5/4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .
HDMI ARC/eARC Adapter - Extractor the Audio from IV to Soundbar or Amplifier .Connect your TV HDMI (ARC/eARC)Port to this switch HDMI Output Port with HDMI Cable ,then HDMI cable to the soundbar ,Speaker ,home theater ,AV receivers etc ,then open “ARC/eARC” button.
HDMI Input compatible with any HDMI device :such as PS 4/Roku/Fire TV /Blu -ray players /Apple TV /Xbox/Nintendo Switch /PS4Pro /Xbox 3 60/Xbox One X / PS 3/Beamer/Laptop and other HDMI signal source .HDMI video /audio Output :Monitor ,TV ,Projector .HDMI audio output :Receiver ,Amplifier ,Speaker ,headphone and other audio device .
Support 24bit deep color per channel ( Kindly Note :It does not compatible with DVI ,we do not recommend you use HDMI to DVI cable connect to your projector /monitor)
Highly recommend use AWG 26(19+1) standard HDMI 2.0 cable .the distance could reach up to 5 meters before and after when the resolution is 4K@60Hz,can reach up to 8 meters before and after if the resolution is below 4K@30Hz.
PACKAGE:
5V/2A USB-C Power Adapter...............................1 pcs
User Manual........................................................1 pcs
HDMI eARC Audio Extractor Splitter.......................1 pcs
SPECIFICATIONS
Input ports..............................................................................1XHDMI
Output port........................................................... 2 XHDMI(Female type )
1 XHDMI Audio output...........................support ARC/eARC function
Audio support.....................LPCM 7 .1CH,Dolby TrueHD ,and DTS -HD Master Audio
Video Resolution........................................up to 4k@60/120Hz RGB 8 :8:8
Operating Temperature...................................0 C to 40 C/ 32Fto 104F
Storage Temperature.......................................- 20 C to 6 C/ -4F to 104F
Dimensions...........................................................62X58X20MM

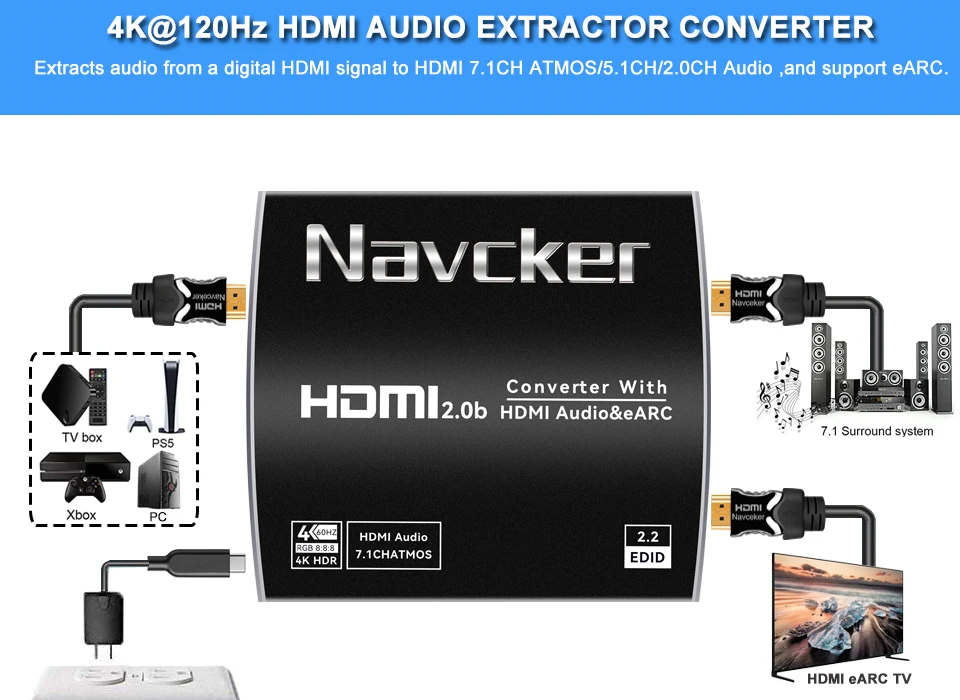

CONNECTION DIAGRAM
Notes :
1 .ARC/eARC :First ,Please make sure your display support ARC/eARC function .Second ,Using HDMI cable plug into HDMI ARC/eARC port on your display .and the other side plug into the HDMI output on the switch .( warm tips :2.0CH audio does not support ARC/eARC function )
2 .You should operate it properly when the switch is working ,If you find the switch is not working ,we suggest you unplug the power supply and plug it again .
3 .When turn on the switch ,By default ,the input 1led indicator will light on at the start when disconnect HDMI source .
