Description:

HDMI extender provides extension of HDMI signals long distances over a single CAT5/5e/6 cable, it supports high resolution up to 1080P signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

• Long range transmission:up to 200m/660ft over a single CAT6 cable;

• Video resolution:480P,576P,720P,1920x1080@60Hz;

• Audio sampling rate:32kHz, 44.1kHz and 48kHz ;

• Audio Format:DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ;

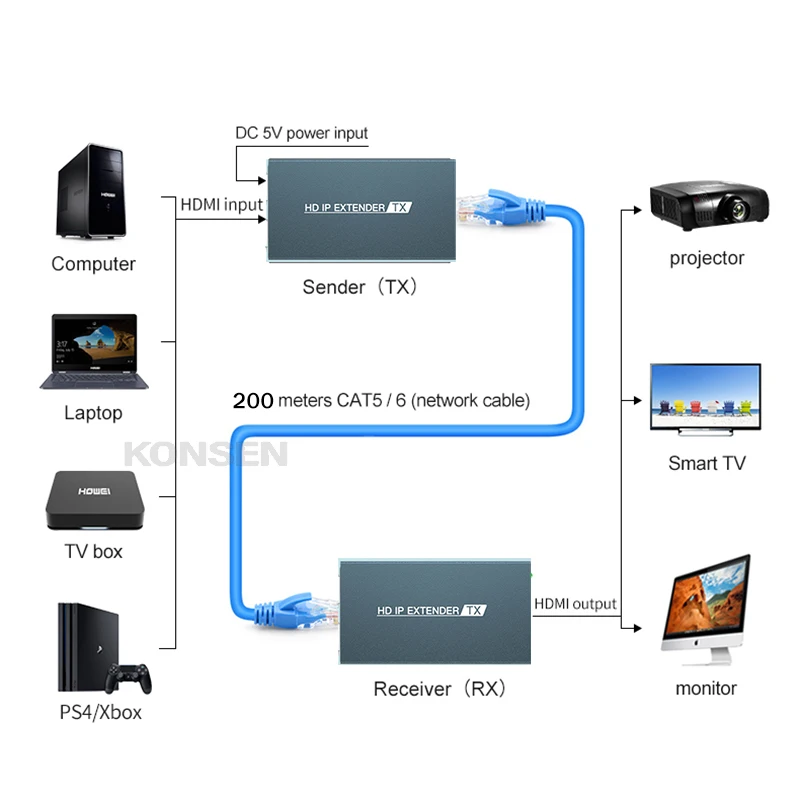

• Male to male:one TX to one RX applicataion;

• Support lossless compression and no delay, adopt H.264 compression encoding method,
  effectively ensure video transmission quality;


• Video standard:compliance with HDMI 1.3 and HDCP 1.2 standard;

• Local EDID function :match many kinds of display devices;
  High compatibility, can auto-match source and display device;

• Built-in automatic adjustment system:make the image smooth, clear and stable;

• Built-in ESD protection system:make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc;plug and play

• Simple to install, plug and play

Specifications:

Video
Standards----------HDMI 1.3; HDCP 1.2
Maximum pixel clock------165MHz
Maximum data rate-------6.75Gbps
Resolution ------1920X1080@60Hz
Connector-----HDMI-A
Impedance--------100Ω


UTP
Interface-----RJ45/IEEE-568B
Transmission distance--------CAT5:120m/400ft,CAT5e:150m/500ft,CAT6:200m/660ft

Other

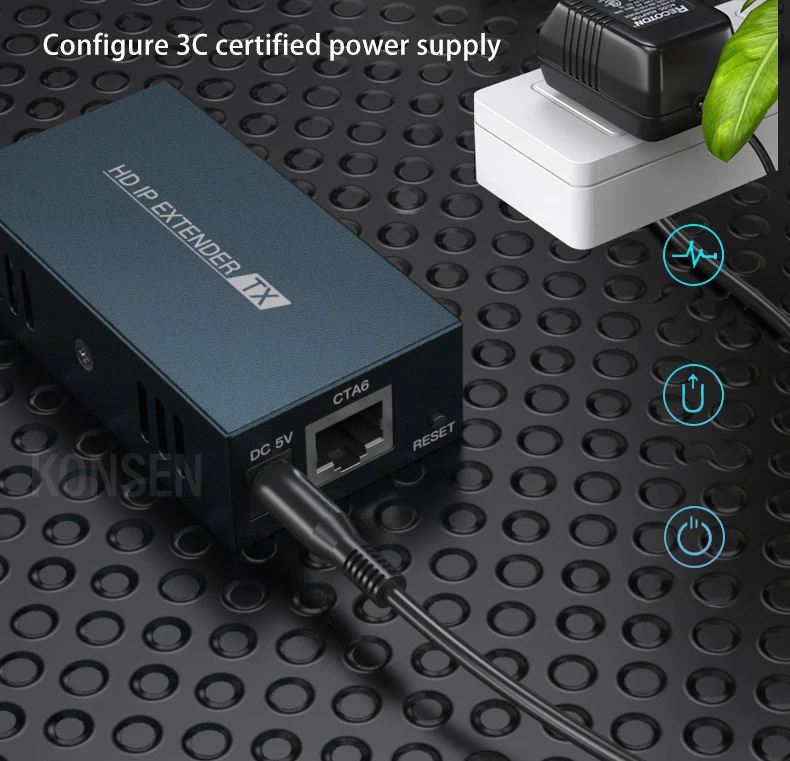

Power supply-----The power adapter: DC 5V/1A
Power dissipation------MAX 6W
Temperature-------Operating: -5℃ ~ +70℃
Humidity-------Operating: 5% ~ 90%
Dimension-------94*71*25mm
The warranty--------1 year free warranty
