SPECIFICATIONS

Brand Name: isfriday

Frames Per Second: 30

Origin: Mainland China

Chipset Manufacturer: MSC

Assembly Mode: Portable Recorder

Item Type: Car DVR

Certification: CE

OEM NO.: 8

Feature:

1. 5-inch TFT LCD widescreen wireless monitor: high image resolution, full color display, low power consumption.

2. Automatic waterproof camera lens with 18 independent infrared (IR) LEDs. The effective range can reach 15m.

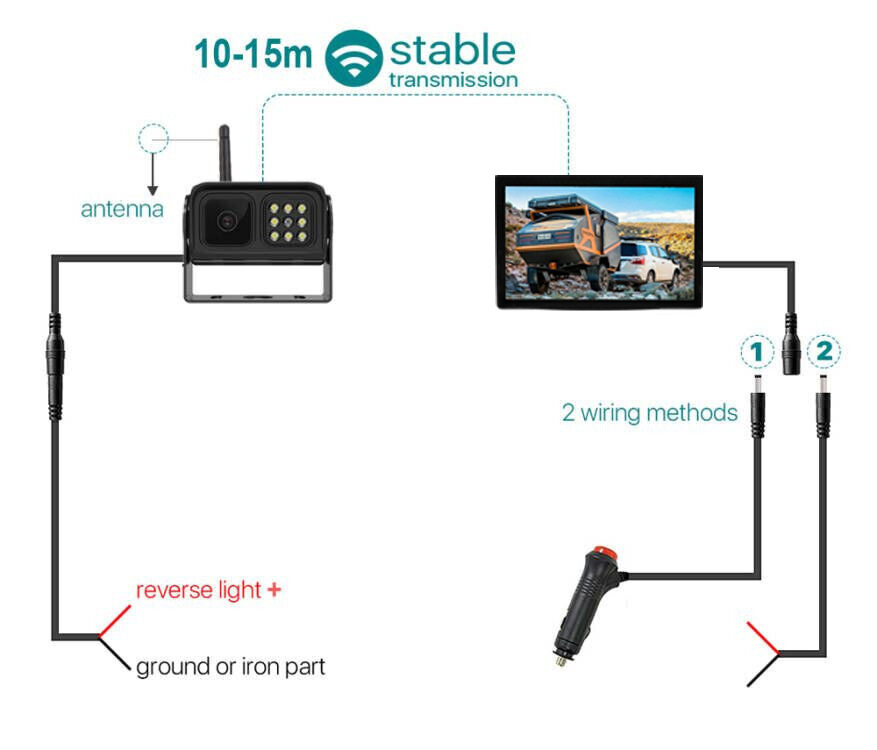

3. Easy installation: wireless parking assist; when you reverse or brake, the display will automatically start and display the video of the rear view camera synchronously.

4. IP 67 waterproof rating can deal with marine environment. Hard metal housing camera; water and mud resistant; it lasts longer without heating so you can always see what's behind the car.

Parameter:

(1) 5"" 2.4GHz Analog Wireless Color Monitor

Product color: black

Screen size: 5-inch 16:9 widescreen

Operating frequency: 2400-2483.5 Mhz Standard: 2370Mhz

Transmission distance: 50 meters

Compression Format: MPEG 4 Video

Transmit frequency: 18 dBm

Transmission speed: 12Mbps

FHSS: Frequency Hopping Spread Spectrum

Frequency hopping: 1200/S

Resolution: 800R.G.B x 480 dots

Video format: PAL/NTSC

Working voltage: 12V/24V DC

Product power: ≤8.64W

Operating temperature: -10°C to +65°C

(2) 2.4GHz digital wireless camera

Product color: black

Shell Material: Aluminum

Standard NTSC: 510*492 pixels, PAL: 510*582 pixels

Resolution: 420 TVL

Product lens: 2.5mm

Minimum Illumination: 0Lux (LED ON)

Infrared lamp beads: 18

Night vision distance: 15 meters

Waterproof grade: IP67

Lens angle: 120°

Working voltage: 12/24V DC

Working temperature: -20℃～+70℃

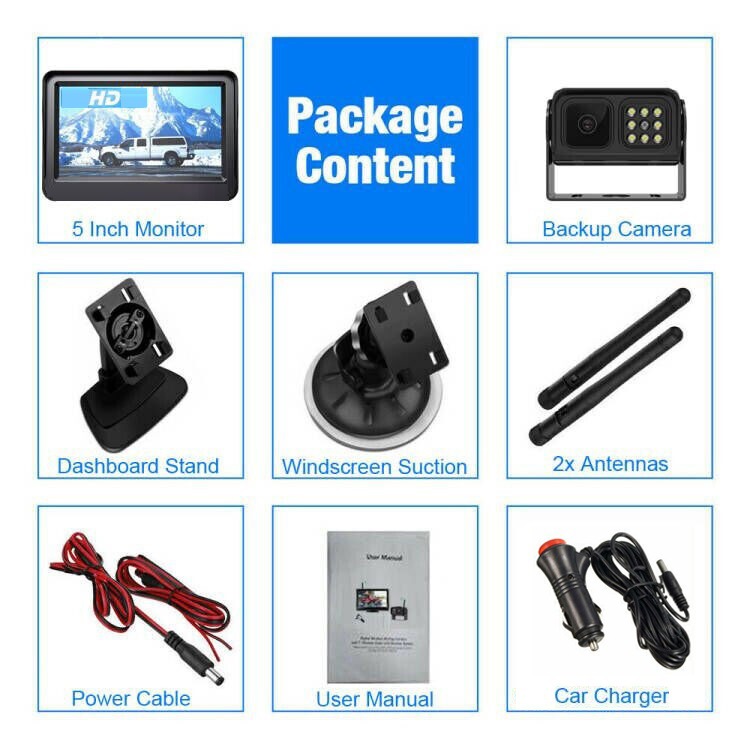

Package Included:

1 x 5"" Color Reversing Display

1 x rear camera

2 x Antennas

1 x Power Cord

2 x Mounting Brackets

1 x User Manual

Notice:

Manual measurement please allow 1-2cm size error
