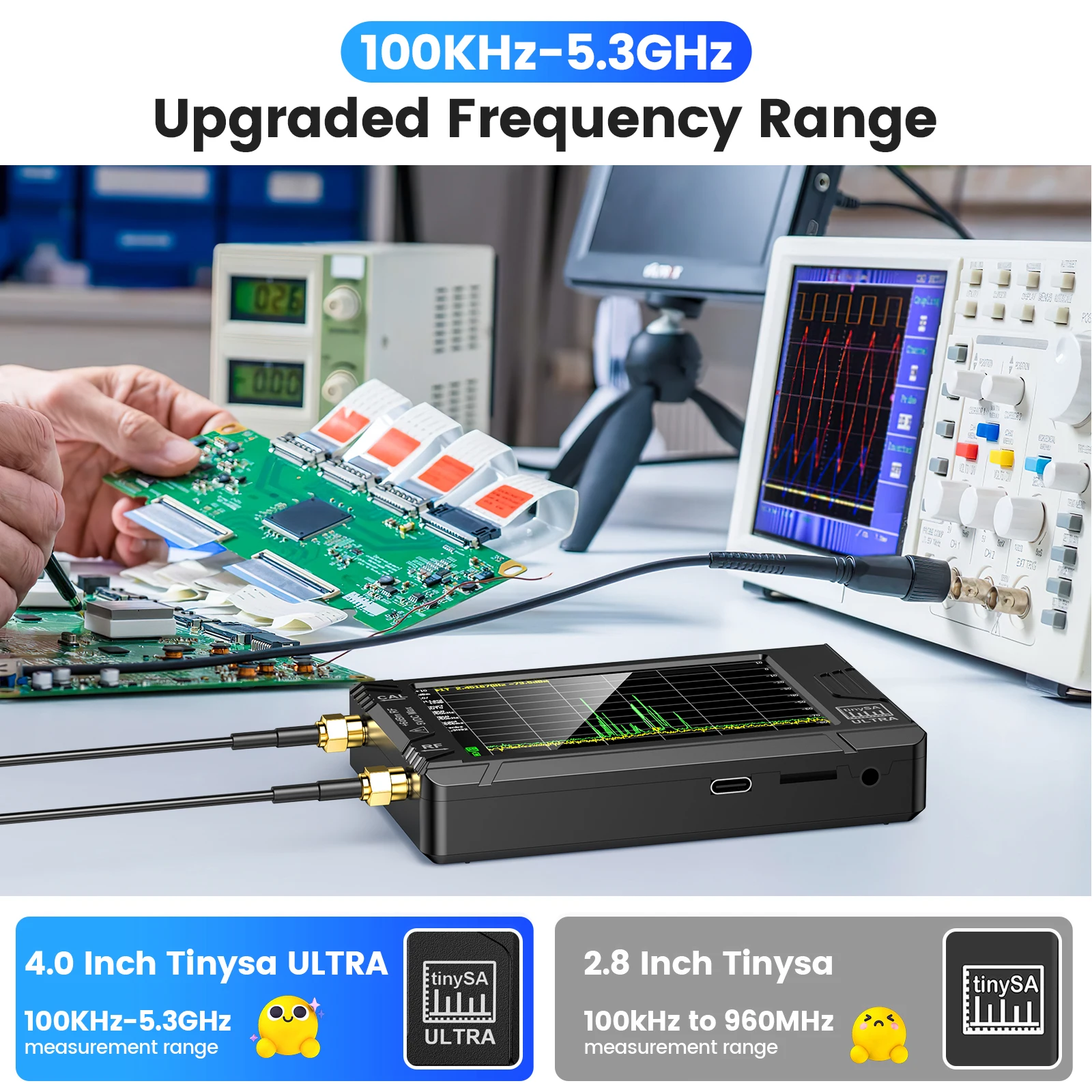

100KHZ-5.3GHZ 4inch Display Handheld Analyzer

$203.36

Shipping calculated at checkout.

Free worldwide shipping

Tested & Inspected

30 Day Money Back Guarantee

In stock, ready to ship
Inventory on the way

[{"id":45381325848834,"title":"CHINA","option1":"CHINA","option2":null,"option3":null,"sku":"200007763:201336100","requires_shipping":true,"taxable":false,"featured_image":{"id":41420963021058,"product_id":8759967187202,"position":1,"created_at":"2024-08-03T15:52:21-04:00","updated_at":"2024-08-03T15:52:24-04:00","alt":"45381325848834|45381325881602","width":1600,"height":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sa7e712cd45c242e48c1110a2d3c8021ff.webp?v=1722714744","variant_ids":[45381325848834,45381325881602]},"available":true,"name":"100KHZ-5.3GHZ 4inch Display Handheld Analyzer - CHINA","public_title":"CHINA","options":["CHINA"],"price":20336,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45381325848834|45381325881602","id":34034362089730,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sa7e712cd45c242e48c1110a2d3c8021ff.webp?v=1722714744"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45381325881602,"title":"Russian Federation","option1":"Russian Federation","option2":null,"option3":null,"sku":"200007763:201336103","requires_shipping":true,"taxable":false,"featured_image":{"id":41420963021058,"product_id":8759967187202,"position":1,"created_at":"2024-08-03T15:52:21-04:00","updated_at":"2024-08-03T15:52:24-04:00","alt":"45381325848834|45381325881602","width":1600,"height":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sa7e712cd45c242e48c1110a2d3c8021ff.webp?v=1722714744","variant_ids":[45381325848834,45381325881602]},"available":true,"name":"100KHZ-5.3GHZ 4inch Display Handheld Analyzer - Russian Federation","public_title":"Russian Federation","options":["Russian Federation"],"price":20336,"weight":0,"compare_at_price":0,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":"45381325848834|45381325881602","id":34034362089730,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/par-masters.com\/cdn\/shop\/files\/Sa7e712cd45c242e48c1110a2d3c8021ff.webp?v=1722714744"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

SPECIFICATIONS

Name: 100KHZ-5.3GHZ 4inch Display Handheld Analyzer
Brand: Par Masters
Price: 203.36 USD
Availability: InStock

Brand Name: SeeSii

DIY Supplies: ELECTRICAL

Origin: Mainland China

Display Size: 3.0 - 4.9 Inches

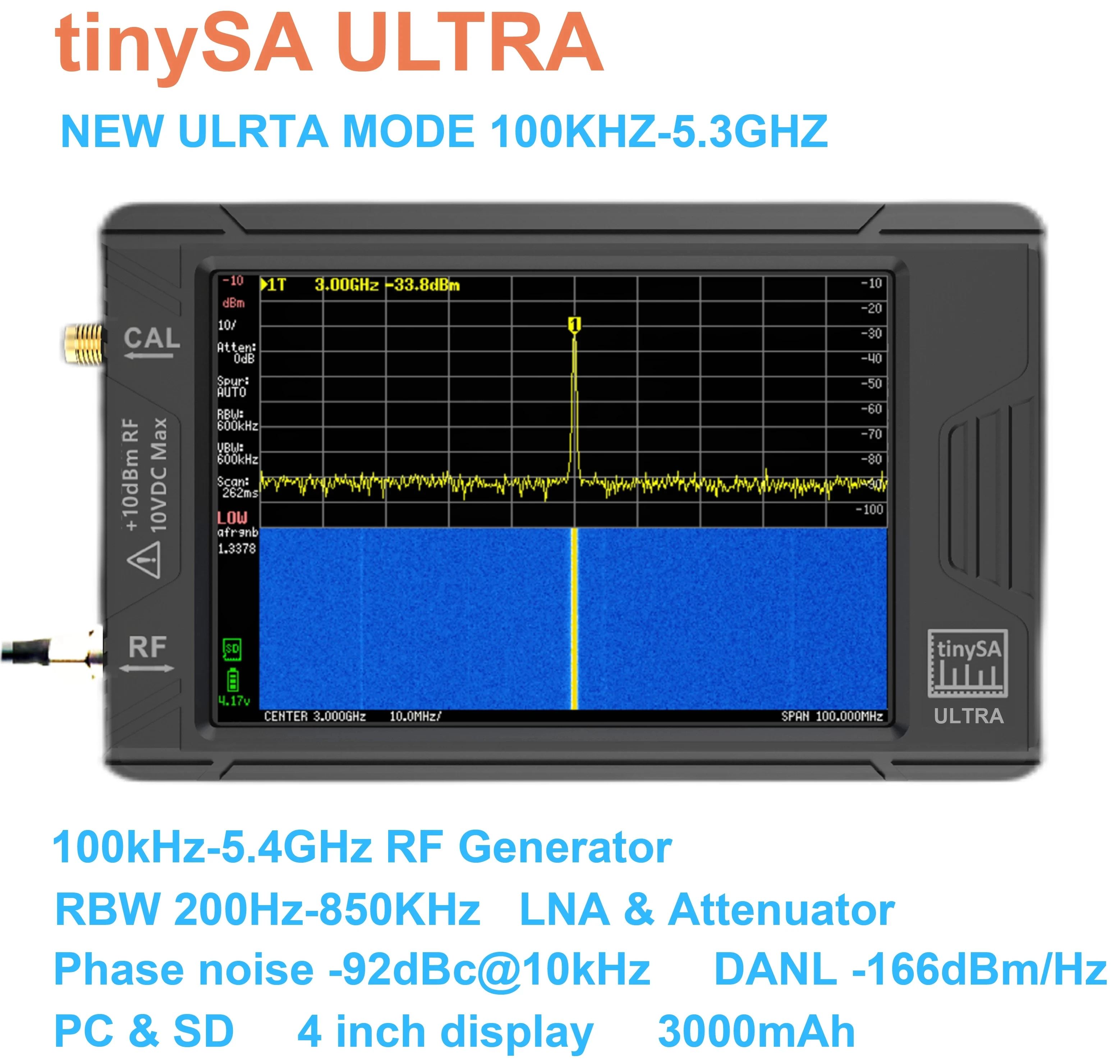

Original 100KHZ-5.3GHZ 4inch Display Handheld Analyzer RF Generator with Battery

Features:

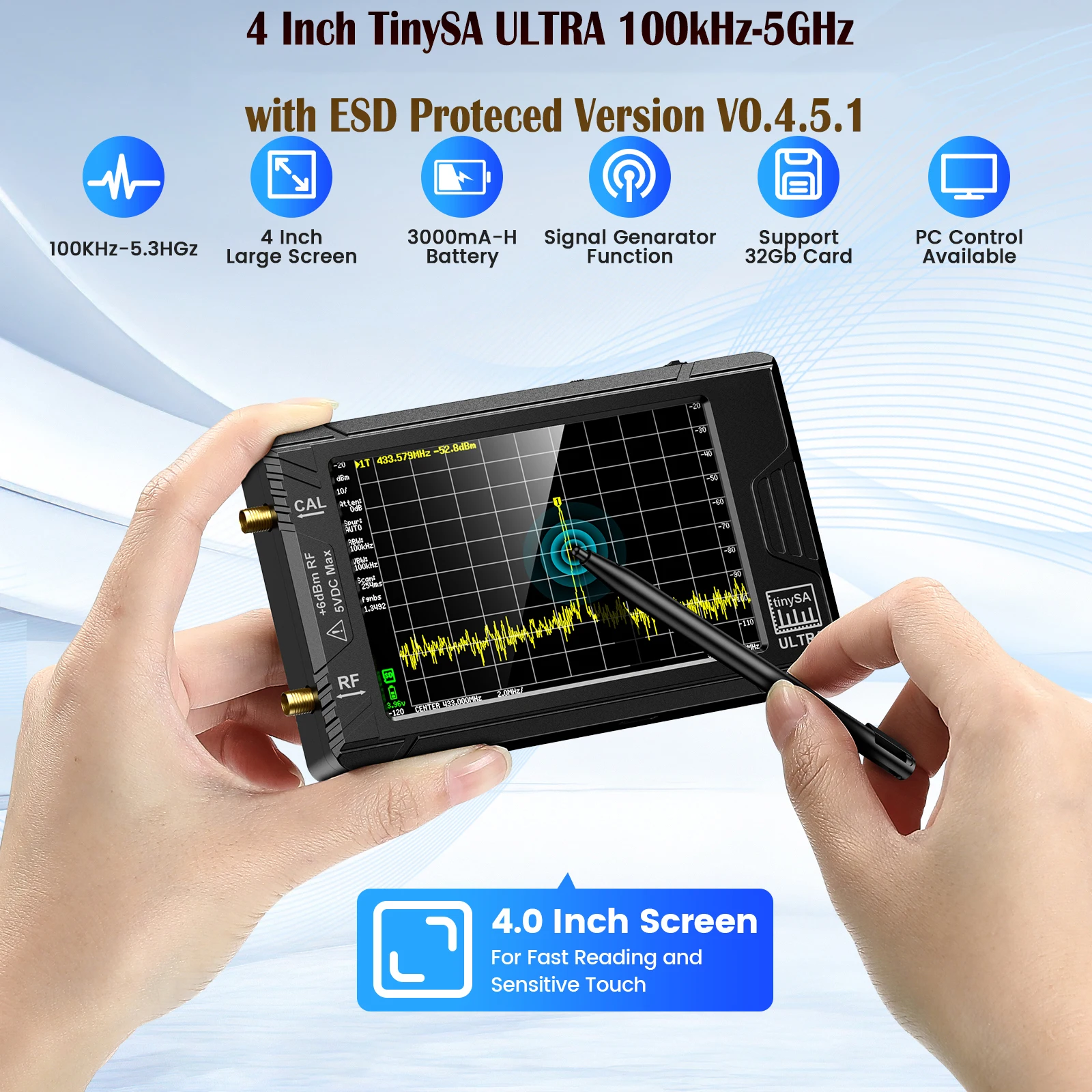

- Screen size 3.95 inch(≈4 inch)

- Analyzer for 0.1-800MHz or, with Ultra mode enabled, 0.1MHz-6GHz

- Signal Generator with sine wave output between 0.1-800MHz or square wave or dual tone output up to 4.4GHz when not used as Analyzer.

- Switchable resolution bandpass filters for both ranges between 200Hz and 850kHz

- Built-in 20dB optional LNA

- Color display showing 450 scan points covering up to the full frequency range.

- Input Step attenuator from 0dB to 31dB (not in combination with LNA).

- A built-in calibration signal generator that is used for automatic self test and (low) input calibration.

- Connected to a PC via USB it becomes a PC controlled Analyzer or Signal Generator

- Rechargeable battery allowing a minimum of at least 2 hours portable use

- Max input level +10dBm. Do not destroy your

- Due to the low cost and very small form factor there are certain relevant limitations and limitations

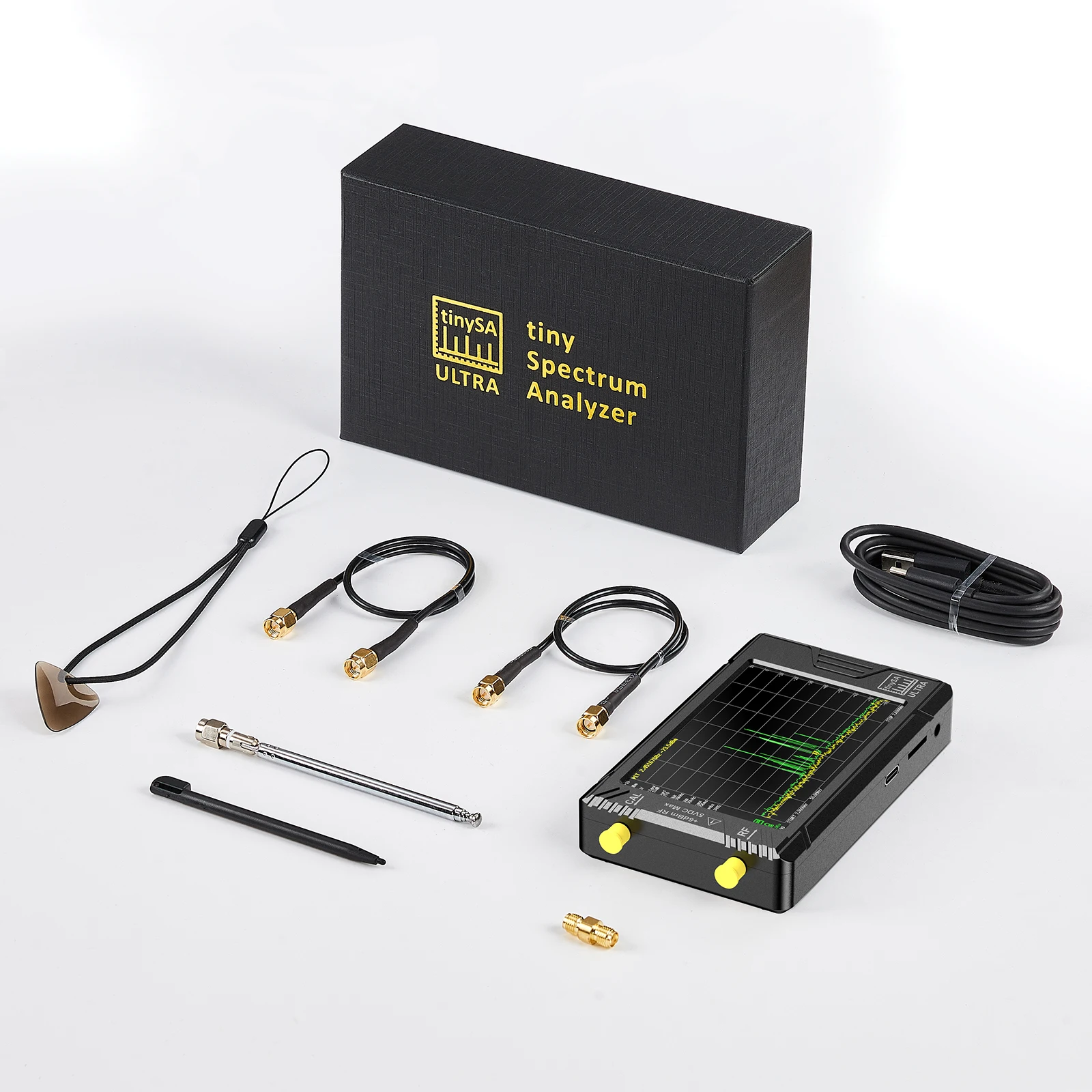

includes:

Host (with 3000mAh battery) x 1

USB Type-C data cable x1

30cm ALSR100 SMA cables x2

SMA-SMA barrel connector x1

Antenna with SMA connector x1

Lanyard and touch plectrum x1

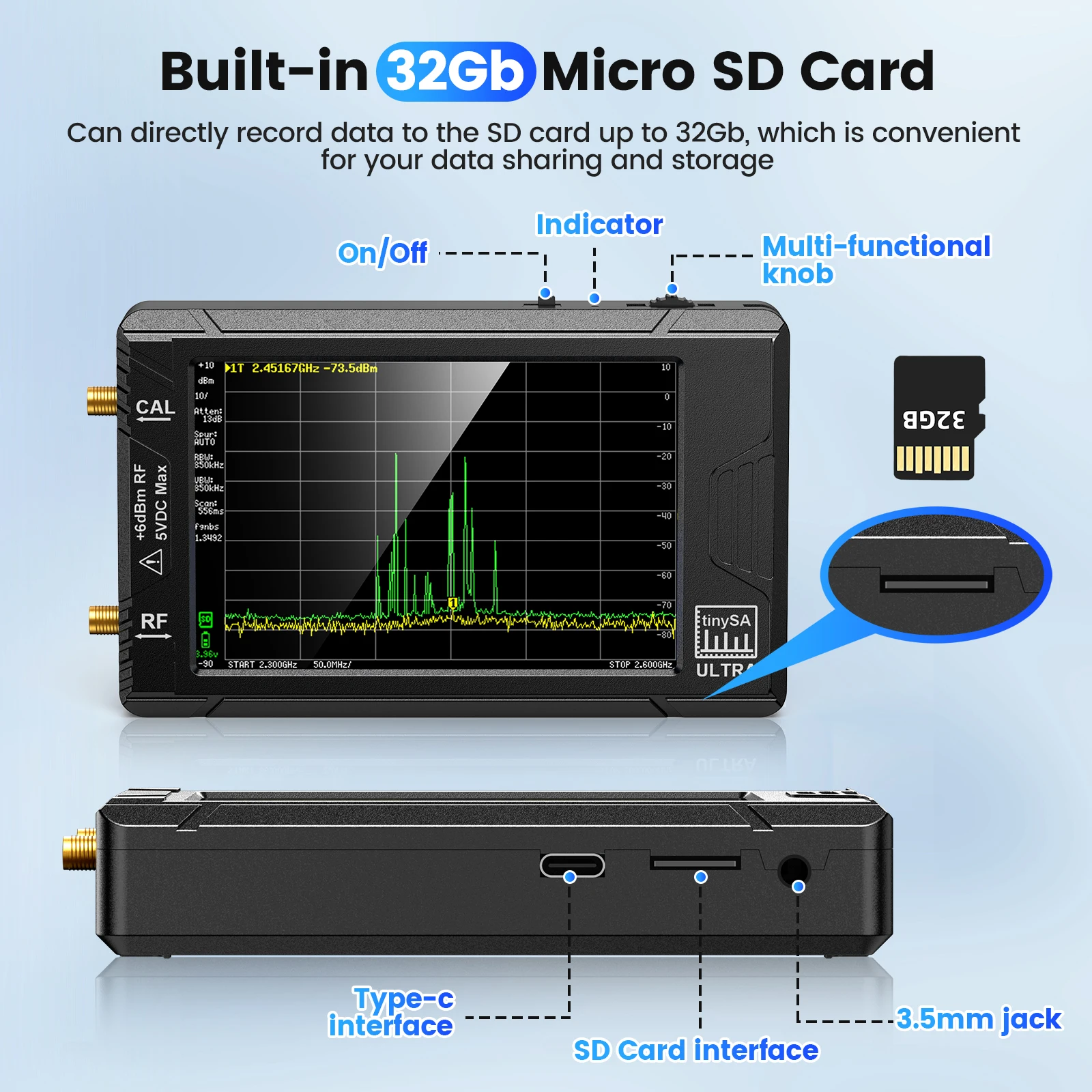

32GB MicroSD card(plugged in the host) x1
